Ekivalan a:

● Flowserve RO-A & Flowserve RO-B Multi Springs Mechanical Seal

Limit operasyon:

● Tanperati: -20 degre - plis 180 degre

● Presyon: Mwens pase oswa egal a 10bar

● Vitès: Mwens pase oswa egal a 15m/s

● Gwosè arbr: 20mm - 100mm

Materyèl:

● Bag sele: A, B, Q1/12, Q2/22, U1/12, U2/22

● Elastomer: VITON, EPDM, NBR, FFKM, AFLAS

● Pati metal: SS304, SS316

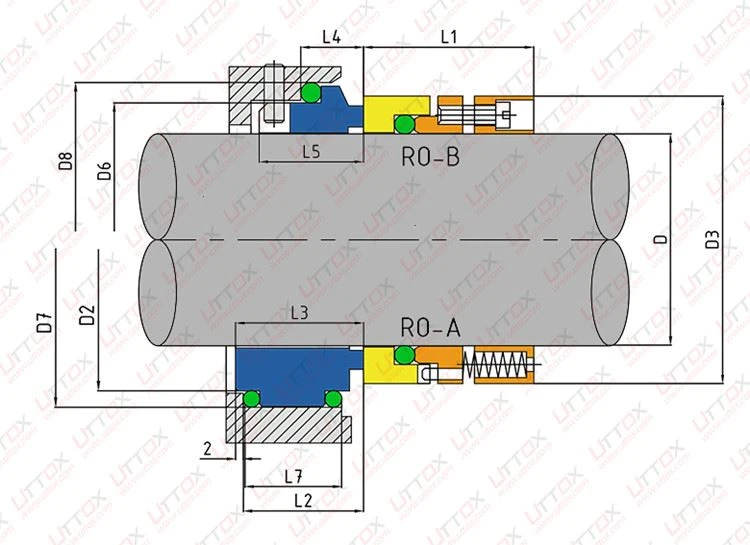

Asanble Dwg:

Dimansyon (mm):

D	D3	L1	RO-A					RO-B
D	D3	L1	L2	L3	L7	D2	D7	L4	L5	D6	D8
20	34	35	23	25	18	36	42	13	21	29	35
22	36	35	23	25	18	38	44	13	21	31	37
24	38	35	23	25	18	40	46	13	21	33	39
25	39	35	23	25	18	41	47	13	21	34	40
28	42	35	23	25	18	44	50	13	21	37	43
30	44	35	23	25	18	46	52	13	21	39	45
32	46	35	23	25	18	48	54	13	21	42	48
33	47	35	23	25	18	49	55	13	21	42	48
35	49	35	23	25	18	51	57	13	21	44	50
38	54	39	25	27	20	58	64	13	21	50	56
40	56	39	25	27	20	60	66	13	21	52	58
42	58	39	25	27	20	62	68	/	/	/	/
43	59	39	25	27	20	63	69	13	21	55	61
45	61	39	25	27	20	65	71	13	21	57	63
48	64	39	25	27	20	68	74	13	21	60	66
50	66	39	25	27	20	70	76	13	21	62	68
52	68	40	25	27	20	72	78	/	/	/	/
53	69	40	25	27	20	73	79	13	21	65	71
55	71	40	25	27	20	75	81	13	21	67	73
58	76	41	28	30	22	83	89	16	24	70	79
60	78	41	28	30	22	85	91	16	24	72	81
62	80	41	28	30	22	87	93	/	/	/	/
63	81	41	28	30	22	88	94	16	24	75	84
65	83	41	28	30	22	90	96	16	24	77	86
68	86	41	30	32	24	93	99	16	24	81	90
70	90	42	30	32	24	95	101	16	24	83	92
75	95	42	30	32	24	104	110	16	24	88	97
80	100	42	31	33	25	109	115	16	24	96	105
85	105	43	31	33	25	114	120	16	24	101	110
90	110	45	31	33	25	119	125	16	24	106	115
95	115	45	31	33	25	124	130	16	24	111	120
100	120	45	31	33	25	129	135	16	24	116	125

Entwodiksyon ki gen rapò

Kondisyon teknik pou sele mekanik yo relativman wo, ak yon varyete de teyori konesans coexist. Pran sele mekanik oswa sele bag k ap flote kòm yon egzanp. Pou rezoud pwoblèm sa yo sele, li nesesè yo konsidere enfliyans nan deformation nan konpozan stator ak rotor akòz fòs la ak tanperati, osi byen ke enpak la nan Vibration ak mete sou karakteristik sa yo idrodinamik nan fim nan likid. Sa vle di, li nesesè yo etidye ak analize pwoblèm nan sele soti nan aspè yo nan dinamik likid, teyori elastik, transfè chalè, triboloji ak teyori Vibration. Sa a se fondasyon an teyorik ak konesans debaz ke enjenyè ak teknisyen angaje nan teknoloji sele ta dwe posede.
